Injection Molding Hydraulic Oil Analysis
Diesel Fuel Lab provides hydraulic oil analysis for injection molding machines — the application where hydraulic fluid contamination crosses directly into part quality, making oil cleanliness a production quality issue as much as a maintenance issue. Our laboratory testing is conducted through Sterling Analytical, providing ISO 4406 particle count analysis, servo-valve-relevant cleanliness assessment, wear metal quantification, and fluid condition evaluation for injection molding processors, maintenance teams, and process engineers.
Hydraulic injection molding machines (IMMs) use hydraulic systems to drive clamp opening and closing, injection and hold pressure, core pulls, ejector operation, and in many machines, barrel rotation — the complete sequence of motion and force control that determines whether a part is produced in specification or out of it. The servo valves that control this sequence with the precision injection molding requires are the most contamination-sensitive hydraulic components in common industrial use. Keeping the hydraulic fluid feeding those valves within the cleanliness code those valves require is not optional — it’s a production quality requirement with a direct consequence line from oil contamination to defective parts.
The Connection Between Hydraulic Oil Cleanliness and Part Quality
This is the distinctive aspect of injection molding hydraulic oil analysis that separates it from every other hydraulic application covered on this site — and it’s worth understanding clearly because it changes the business case for oil analysis from a maintenance cost avoidance argument to a production quality argument.
In an excavator, contaminated hydraulic fluid damages pumps and cylinders — the consequence is equipment failure and repair cost. In an injection molding machine, contaminated hydraulic fluid first affects servo valve performance before it causes mechanical failure. Servo valve contamination causes erratic, non-repeatable valve response — the valve spool sticks slightly, responds sluggishly, or cycles inconsistently. The injection molding machine translates this valve behavior directly into the injection process: inconsistent injection velocity profile, erratic hold pressure, variable fill time. The part result is shot-to-shot variation in weight, dimensions, and surface finish.
A processor dealing with unexplained dimensional variation between cavities, inconsistent surface finish across a production run, or flash appearing and disappearing without an apparent process change is likely to investigate mold wear, process settings, and material lot variation before considering hydraulic oil cleanliness. But servo valve contamination is a documented cause of exactly these symptoms — and it’s one of the few quality problems where the manufacturing process is operating correctly while the hydraulic control system is not.
This connection — contaminated oil → degraded servo valve response → inconsistent process → defective parts — makes hydraulic oil analysis for injection molding machines a quality control tool, not just a maintenance tool.
Why Injection Molding Machines Require the Tightest Hydraulic Cleanliness of Any Common Application
Servo valves are precision hydraulic control components with clearances between spool and bore measured in single-digit microns — tighter than almost any other hydraulic component. This precision enables their performance: a servo valve can modulate hydraulic flow with millisecond response time and fine position resolution. It also creates their vulnerability: a particle that would pass harmlessly through a gear pump or cylinder rod seal can wedge in a servo valve spool and cause stiction (sticky valve response) or progressive erosion of the spool edge geometry that degrades valve performance.
The ISO 4406 cleanliness target for servo valves in injection molding applications is ISO 15/13/10 — one code level cleaner than the ISO 16/14/11 recommended for most heavy construction equipment, two levels cleaner than gear pumps and cylinders. Because the ISO scale is logarithmic, ISO 15/13/10 vs. ISO 17/15/12 is not a two-unit difference — it’s an approximately eightfold difference in particle concentration. Injection molding machines operating at ISO 17/15/12 (the condition that many production machines actually run at due to deferred maintenance) are exposing their servo valves to roughly eight times more particles than the servo valve specification requires.
This is the single most important oil cleanliness fact for injection molding maintenance teams: most IMMs in production service run dirtier hydraulic fluid than their servo valves are designed to tolerate. Laboratory particle count analysis documents where a given machine’s fluid actually sits relative to its servo valve requirements.
The "New Oil is Not Clean Oil" Problem
One of the most consequential — and counterintuitive — facts about injection molding machine hydraulic oil is that new hydraulic fluid straight from the drum is not clean enough to add directly to the machine’s hydraulic reservoir.
Bulk hydraulic oil as delivered by a supplier typically arrives at approximately ISO 21/19/16 — a cleanliness code that’s acceptable for rough hydraulic applications but is dramatically above the ISO 15/13/10 requirement for servo valve protection. Adding unfiltered new oil directly to an IMM reservoir introduces a contamination surge that can elevate the entire system’s particle count well above target for an extended period while the machine’s own filtration system gradually works the count back down.
Major injection molding machine manufacturers, including Arburg, specifically address this in their maintenance documentation: new oil must be micro-filtered before being added to the IMM reservoir, not poured directly from the drum. The recommended practice is to pre-filter new oil through a portable filtration cart or dedicated pre-filter system to ISO 15/13/10 or better before it enters the machine. This is not an extreme precaution — it’s the standard practice recommended by IMM manufacturers because the machines are designed to operate at cleanliness levels that commercial lubricant distribution cannot consistently achieve at the drum.
A laboratory particle count test on the machine’s hydraulic fluid immediately after an oil addition — if new oil was added without pre-filtration — will reliably show a cleanliness code spike. This spike can take days to weeks of machine filtration to recover from, during which servo valve exposure to excess particles continues.
The Full Injection Molding Hydraulic Oil Testing Panel
Laboratory analysis for injection molding machine hydraulic oil combines particle count (the primary cleanliness metric for servo valve protection), wear metals (component health indicators), water (corrosion and fluid degradation driver), and fluid condition (viscosity, TAN, oxidation) into a complete machine health picture:
Test | Method | What It Reveals |
Particle Count (ISO 4406) | ISO 4406 / ASTM D7647 | Cleanliness code at ≥4µm, ≥6µm, ≥14µm; primary servo valve protection metric |
Elemental Wear Metals | ASTM D5185 | Iron, copper, aluminum, chromium, silicon — component wear and ingress indicators |
Water Content (Karl Fischer) | ASTM D6304 | Dissolved water causing corrosion and additive depletion |
Viscosity at 40°C | ASTM D445 | Confirms ISO 32 or ISO 46 grade integrity; detects dilution or thickening |
Total Acid Number (TAN) | ASTM D664 | Oxidative degradation and acidic contamination accumulation |
Oxidation (RPVOT or RULER) | ASTM D2272 | Remaining antioxidant additive life |
Visual Appearance | — | Color, clarity, visible contamination baseline |
ISO viscosity grades for injection molding machines: Most hydraulic IMMs specify ISO VG 32 or ISO VG 46 hydraulic oil depending on machine design, ambient temperature, and manufacturer specification. ISO 32 is more common in machines operating in warmer environments or where fast response is prioritized; ISO 46 is more common in general industrial environments. Verifying that the viscosity at 40°C matches the specified grade is particularly important because mixing ISO 32 and ISO 46 (or adding the wrong grade during a top-up) alters both viscosity and additive chemistry in ways that can affect servo valve response and overall system performance.
What Contaminated Hydraulic Oil Actually Does to Injection Molding Servo Valves
Understanding the specific failure mechanisms in servo valves helps connect laboratory results to machine behavior in a way that motivates appropriate response:
Spool stiction from particle-induced wedging Fine particles that enter the micron-level clearance between a servo valve spool and its bore create friction between the spool and bore surfaces. The spool — which must move freely and precisely to modulate hydraulic flow — begins to move sluggishly, stick intermittently, or require higher actuating force to respond. In an injection molding machine, spool stiction translates directly into erratic injection velocity profiles: the injection speed doesn’t follow its setpoint profile smoothly but instead lurches and hesitates as the sticking spool responds inconsistently. Parts produced during a stiction event typically show internal stress, surface sink marks, or dimensional variation from the standard.
Erosive wear of spool edge geometry As particles circulate through a servo valve at high velocity under significant pressure differential, they erode the sharp edge geometry of the spool lands that control flow. Eroded valve edges produce increased internal leakage and reduced position accuracy — the valve can no longer control flow as precisely as it was designed to. In a molding machine, eroded servo valve geometry causes creeping process drift: the machine gradually drifts away from its qualified process without any setpoint change, requiring increasingly frequent process adjustments to maintain part quality until the valve is eventually replaced.
Silting — slow spool seizure from submicron particle accumulation Submicron particles — too small to count individually with standard particle counters — can accumulate in the narrow annular clearance between spool and bore over time, forming a packed layer that gradually tightens the spool fit. Silting is a slow process and may not be apparent in ISO 4406 particle counts (which measure particles above 4µm), making it a subtle contamination failure mode. A machine with otherwise acceptable particle counts but deteriorating servo response may be experiencing silting from submicron particle accumulation that standard counting doesn’t capture.
Sampling Intervals and Program Design for Injection Molding Machines
The recommended sampling approach for injection molding machines differs from construction equipment in one important way: the primary concern is servo valve cleanliness at very tight tolerances, which requires more frequent sampling when any concern exists and more disciplined interpretation against servo valve-specific targets rather than general hydraulic system targets.
Recommended sampling intervals:
Machine Condition | Sampling Interval |
New machine or new oil charge | Immediately and at 100 hours (verify cleanliness; detect original contamination) |
Established machine, known clean history | Every 500–1,000 machine hours or quarterly |
Machine showing process variability, unexplained defects | Immediately and at 250-hour intervals until resolved |
After any component replacement (pump, servo valve, cylinder) | Within 100 hours of return to service |
After any oil addition | Within 100 hours to verify cleanliness maintained |
On initial machine commissioning and new oil charges: The practice of sampling immediately on a new machine reflects the documented risk of original contamination from factory assembly. Real injection molding machine manufacturers address this specifically: assembly contamination from machining debris, pipe scale, and improperly cleaned components can pre-contaminate a machine before it ever runs a production cycle. A particle count test before or shortly after commissioning establishes whether the machine was delivered in clean condition or whether pre-production flushing is needed.
Common Findings in Injection Molding Hydraulic Oil Analysis
ISO particle count above target (e.g., 18/16/13 against ISO 15/13/10 target) Most common finding in IMM fluid analysis programs, and the most important to address. Root causes include: oil added without pre-filtration, filter element past service life, contamination from component repair without flushing, or bypassing filter due to clogged element generating bypass valve opening. Recommended action: identify and address ingress source, add offline kidney loop filtration, verify filter element condition, pre-filter any future oil additions.
Elevated iron with rising particle count Internal wear — most commonly pump wear progressing to advanced stage — generating wear debris that the filtration system cannot keep pace with. Iron above 50 ppm alongside ISO codes above target indicates pump inspection is needed. In an IMM, pump wear also affects system pressure consistency, which translates into inconsistent injection hold pressure and potential part quality effects.
Elevated silicon Ingress of external particulate through breather, fill cap, or cooling water system contamination. In the injection molding environment, mold release agents and process materials sprayed near the machine are potential sources of contamination that don’t exist in other hydraulic applications. Elevated silicon with normal iron points to ingress rather than internal wear.

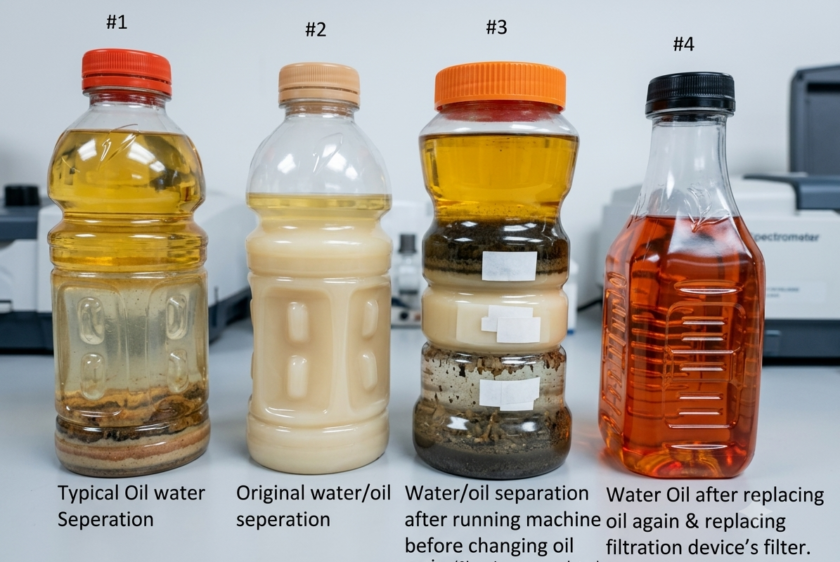

Water above 300–500 ppm Cooling water contamination through leaking oil/water heat exchanger (a standard component of IMM hydraulic systems) is a documented and common water ingress pathway specific to injection molding machines. Many IMMs use a hydraulic oil cooler where high-pressure cooling water passes in close proximity to hydraulic fluid — a pinhole leak in the heat exchanger core introduces cooling water directly into the hydraulic circuit. Karl Fischer water results above normal baseline in an IMM, combined with elevated conductivity, can indicate heat exchanger contamination.
Who Uses Injection Molding Hydraulic Oil Analysis
Injection molding processors operating hydraulic IMMs who need to connect unexplained part quality variation, surface defects, or dimensional inconsistency to a root cause beyond process settings and mold condition.
Maintenance teams at molding operations running hydraulic oil analysis programs as part of preventive maintenance, using trending data to schedule servo valve inspection and replacement before process degradation affects production.
Process engineers investigating why a qualified process has drifted without apparent cause — servo valve condition and hydraulic oil cleanliness are the hydraulic system’s contribution to unexplained process drift.
Equipment managers at multi-press facilities monitoring oil condition across a fleet of hydraulic IMMs, prioritizing maintenance on machines approaching contamination thresholds before they affect production.
Injection molding machine dealers and service technicians supporting customers with commissioning validation, post-repair verification, and planned maintenance programs.
How to Submit an Injection Molding Machine Hydraulic Oil Sample
- Contact us to specify testing scope — routine monitoring panel, servo valve cleanliness investigation, water source investigation, or post-repair baseline
- Receive your sample kit — clean evacuated sample bottle designed to maintain sample integrity from collection to analysis
- Collect your sample properly:
- Sample from the return line or reservoir sampling port with machine at operating temperature (hydraulic oil at normal running temperature after production operation)
- Use a clean sampling pump or vacuum extraction; avoid sampling from the drain port while machine is cold
- Record machine make, model, serial number, hours at sampling, oil type and ISO grade, date of last oil change and filter change, and any observed process symptoms or maintenance events
- Ship your sample using the prepaid return label
- Receive your Certificate of Analysis with ISO 4406 code, elemental results, water content, viscosity, TAN, and interpretation against servo valve target cleanliness
Standard turnaround: 3–5 business days. Rush service available for active process quality investigations.
Testing conducted through Sterling Analytical, established 1957, West Springfield, Massachusetts. Visit sterlinganalytical.com →
Injection Molding Hydraulic Oil Analysis Testing
Submit your hydraulic oil sample along with details about the injection molding machine, operating hours, hydraulic system conditions, maintenance history, filter status, and any observed issues such as slow cycle times, pressure fluctuations, overheating, unusual noise, or oil discoloration. We’ll recommend the most appropriate hydraulic oil analysis panel for your injection molding equipment and provide detailed results with interpretation, contamination assessment, and maintenance recommendations to help maximize system performance and reliability.
Testing is conducted through Sterling Analytical in West Springfield, established in 1957.
Frequently Asked Questions
Contamination degrades servo valve response through spool stiction, erosive wear of valve edges, and particle silting. These valve failures cause erratic injection velocity, inconsistent fill and hold pressure, and shot-to-shot process variation that produces dimensional variation, surface defects, and flash — quality problems often misdiagnosed as mold wear or process issues before hydraulic oil is investigated.
ISO 15/13/10 is the standard target for servo valve protection in injection molding applications — stricter than the ISO 16/14/11 recommended for most construction equipment. Because the ISO scale is logarithmic, ISO 15 vs ISO 17 represents an approximately fourfold difference in particle concentration, not a minor two-unit variation.
No. Bulk hydraulic oil as delivered typically arrives at approximately ISO 21/19/16 — far above the ISO 15/13/10 servo valve requirement. Major IMM manufacturers including Arburg specifically require new oil to be micro-filtered through a portable filtration cart before being added to the machine reservoir.
Stiction is sticky or sluggish spool movement caused by fine particles wedging in the micron-level clearance between the spool and its bore. The spool moves inconsistently rather than smoothly, producing erratic flow modulation and machine response.
Silting is the accumulation of submicron particles in the servo valve spool-bore clearance over time, gradually tightening the spool fit until it moves sluggishly or seizes. Because standard ISO 4406 counting measures particles above 4 microns, silting from submicron particles may not be captured by routine particle count results.
Many IMMs use an oil/water heat exchanger to cool hydraulic fluid. A pinhole in the heat exchanger core allows cooling water to enter the hydraulic circuit directly. Elevated Karl Fischer water results combined with elevated conductivity in an IMM hydraulic fluid sample can indicate heat exchanger contamination.
